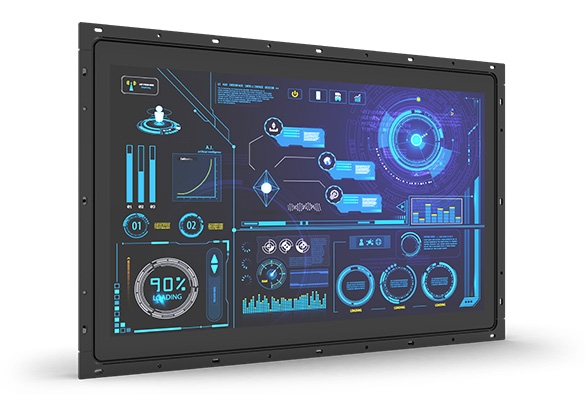

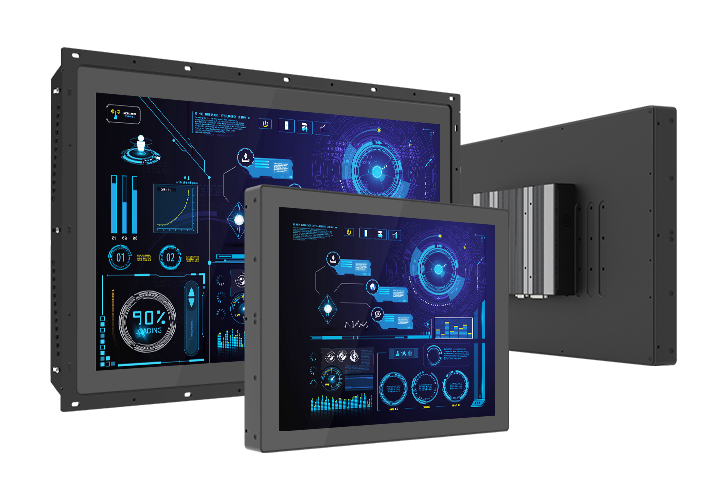

入门开放式架构平板电脑 (CO-100/P1000系列)
德承节能开放式架构平板电脑(CO-100/P1000系列)，采用Intel® Atom® / Pentium®系列处理器，支援多显功能。除具备丰富的原生I/O如LAN、USB、COM、DIO外，部分系列支持CFM技术(CO-100/P1101系列)，能依据需求扩展应用功能，如Power Ignition Sensing (IGN)及Power over Ethernet (PoE)。此外，一体式设计、独家可调式安装支架以及支援多款安装模式，除了能完美结合于不同材质、厚度的机柜外壳，呈现整体一致性外，其强固设计也兼顾工业严苛环境现场端的应用需求。| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
 | CO-119C / P1301 Series | 19" TFT 1280x1024 (5:4) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CO-119C / P1201 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CO-119C / P1101 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
 | CO-119C / P1001 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 1x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 8x DIO | 1x Mini-PCIe |
 | CO-W121C / P1301 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CO-W121C / P1201 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CO-W121C / P1101 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
 | CO-W121C / P1001 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 1x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 8x DIO | 1x Mini-PCIe |
 | CO-W124C / P1301 Series | 24" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CO-W124C / P1201 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CO-W124C / P1101 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
 | CO-W124C / P1001 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 1x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 8x DIO | 1x Mini-PCIe |
